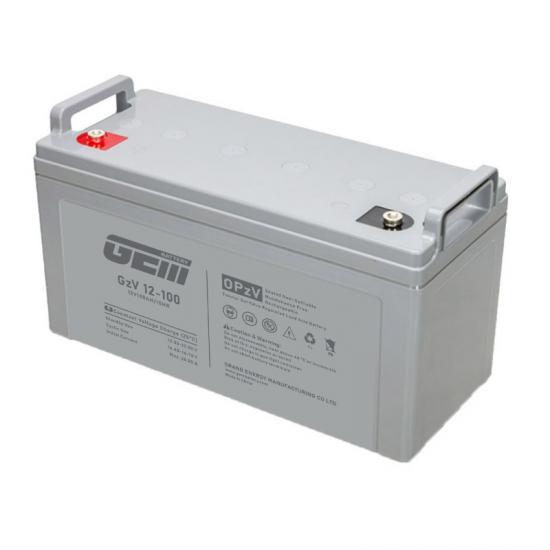

GzV 12-100 (12V-100AH)

OPzV battery 12V-100AH
  • Brand:

    GEM BATTERY
  • Payment:

    TT bank transfer
  • Shipping port:

    All China ports
  • Lead Time:

    25 days
  • Designed Life:

    20 years
  • Type:

    OPzV tubular gel
  • Application:

    Sizable renewable energy storage, Power plant, Off-grid power, Solar power, Telecom power, UPS power
  • Product Details


GEM I GzV

Series

Voltage
(V)
Capacity
(AH/10HR)
Dimension (in)
Weight
±5%
(lbs)
Dimension (mm)
Weight

±5%

(kgs)

Terminal
±0.04 ±0.04 ±0.08 ±0.08 ±1 W ±2 ±2
L (in)
W (in)
H (in)
TH (in)
L (mm) W (mm) H(mm) TH (mm)
GzV 12-100 12 100 16.00 6.82 8.27
9.26  79.37 406 173 210 235 36.0 R6


GEM Battery I GzV batteries are known as OPzV battery, particularly designed for Renewable Energy Power reserve and supply system.


➤ Features:

1. Extremely long life, GzV batteries are designed for 20 years of float service life.

2. Wide operation temperature between -45C and 60C.

3. High and stable durability for deep and cyclic discharges.

4. Modular installation for saving footprint space and easy management.

5. Highly reliable performance offers peace of mind away from battery power failure.


➤ Technical highlights:

1. Tubular positive plates: alloyed by strengthened and special-formulated Pb-Ca-Sn-Ag grids with high corrosion resistance. The tubular tube construction is optimized for high-energy containing PAM.

2. Flat pasted negative plates: selected thicker plates and grids consisting of high purity Pb-Ca-Sn alloy for a long-life cooperation supporting to the positive plates.

3. Separator: High quality Micro-porous PVC-SiO2 material, it's excellent for electrolyte permeability and low internal resistance.

4. Electrolyte: Gelled electrolyte mixing with material of high purity Sulfuric Acid H2SO4 and hydrophilic pyrogenic silica SiO2, and following a tailor-made mixing formula. The Gelled electrolyte is perfect for acid storage and supply under low-and-high temperature operation, and providing good recovery capability after deep discharge.

5. Valve Regulates: GzV-OPzV is kind of Sealed and Maintenance-free VRLA battery equipped with high quality flame arrestor valves which keep the batteries operating at low gas pressure.


➤ Typical applications:

1. Renewable Energy Power reserve and supply, sizable Solar power and Wind power projects.

2. On-Off-Grid Power industry

3. Power Plant

4. Mobile Energy power storage systems

5. Telecom, BTS, Radio wave station


● GEM Battery I GzV Series SMF VRLA batteries.



To download the data sheet of specific model, please Contact us
