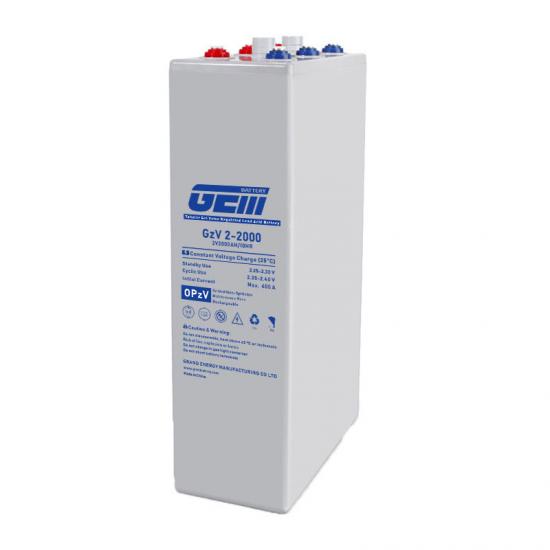

Tubular gel OPzV battery for solar

OPzV Tubular GEL batteries.
  • Brand:

    GEM BATTERY
  • Item No.:

    Tubular Gel battery
  • Payment:

    FOB & CIF
  • Product origin:

    China
  • Color:

    Typically White or Transparent
  • Shipping port:

    Xiamen
  • Lead Time:

    28 days
  • Designed Life:

    20 years
  • Product Details

GEM Battery I GzV batteries are known as OPzV battery, particularly designed for Renewable Energy Power reserve and supply system.


➤ Features:

1. Extremely long life, GzV batteries are designed for 20 years of float service life.

2. Wide operation temperature between -45C and 60C.

3. High and stable durability for deep and cyclic discharges.

4. Modular installation for saving footprint space and easy management.

5. Highly reliable performance offers peace of mind away from battery power failure.


➤ Technical highlights:

1. Tubular positive plates: alloyed by strengthened and special-formulated Pb-Ca-Sn-Ag grids with high corrosion resistance. The tubular tube construction is optimized for high-energy containing PAM.

2. Flat pasted negative plates: selected thicker plates and grids consisting of high purity Pb-Ca-Sn alloy for a long-life cooperation supporting to the positive plates.

3. Separator: High quality Micro-porous PVC-SiO2 material, it's excellent for electrolyte permeability and low internal resistance.

4. Electrolyte: Gelled electrolyte mixing with material of high purity Sulfuric Acid H2SO4 and hydrophilic pyrogenic silica SiO2, and following a tailor-made mixing formula. The Gelled electrolyte is perfect for acid storage and supply under low-and-high temperature operation, and providing good recovery capability after deep discharge.

5. Valve Regulates: GzV-OPzV is kind of Sealed and Maintenance-free VRLA battery equipped with high quality flame arrestor valves which keep the batteries operating at low gas pressure.


➤ Typical applications:

1. Renewable Energy Power reserve and supply, sizable Solar power and Wind power projects.

2. On-Off-Grid Power industry

3. Power Plant

4. Mobile Energy power storage systems

5. Telecom, BTS, Radio wave station


● GEM Battery I GzV Series SMF VRLA batteries.

GEM I GzV

Series

Voltage
(V)
Capacity
(AH/10HR)
Dimension (in)
Weight
±5%
(lbs)
Dimension (mm)
Weight
±5%
(kgs)
Terminal
±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2
L (in) W (in) H (in) TH (in) L (mm) W (mm) H (mm) TH (mm)
GzV 2-200 2 200 8.12  4.06  14.03  15.33  40.79  206 103 356 389 18.50  M8*20
GzV 2-250 2 250 8.12  4.89  14.03  15.33  49.60  206 124 356 389 22.50  M8*20
GzV 2-300 2 300 8.12  5.71  14.03  15.33  58.42  206 145 356 389 26.50  M8*20
GzV 2-350 2 350 8.12  4.89  18.64  19.90  62.83  206 124 473 505 28.50  M8*20
GzV 2-420 2 420 8.12  5.71  18.64  19.90  73.85  206 145 473 505 33.50  M8*20
GzV 2-490 2 490 8.12  6.54  18.64  19.90  84.88  206 166 473 505 38.50  M8*20
GzV 2-600 2 600 8.12  5.71  25.45  26.71  103.62  206 145 646 678 47.00  M8*20
GzV 2-800 2 800 8.27  7.53  25.45  26.71  138.89  210 191 646 678 63.00  M8*20
GzV 2-1000 2 1000 9.18  8.27  25.45  26.71  170.86  233 210 646 678 77.50  M8*20
GzV 2-1200 2 1200 10.84  8.27  25.45  26.71  200.62  275 210 646 678 91.00  M8*20
GzV 2-1500 2 1500 10.84  8.27  31.32  32.58  246.92 275 210 795 827 112.00  M8*20
GzV 2-2000 2 2000 15.72  8.35  30.34  31.60  330.69  399 212 770 802 150.00  M8*20
GzV 2-2500 2 2500 19.19  8.35  30.34  31.60  415.57  487 212 770 802 188.50  M8*20
GzV 2-3000 2 3000 22.69  8.35  30.34  31.60  496.04  576 212 770 802 225.00  M8*20



To download the data sheet of specific model, please Contact us
