Front terminal battery 12V for data center

AGM VRLA 12V 50~200 Ah

Brand:
GEM BATTERY
Item No.:
Front Terminal Acces
Payment:
FOB & CIF
Product origin:
China
Color:
Customized color available, typically White.
Shipping port:
Xiamen
Lead Time:
25 days
Designed Life:
10-12 years

inquire now

Product Details

GEM I GF Series batteries are tailor-designed for telecom applications and the data centers. With the front terminal access layout, the batteries could be easily installed in modular cabinet & rack systems. The GEM I GF Series batteries adopt AGM technology, the new material AGM separator enables great efficiency of the internal gas re-combination and internal centralized venting operation, it makes the internal mechanism of the batteries running at low gas pressure so as to provide absolutely safe conditions and excellent reliability even if the compact width of the batteries. High quality Pb-Ca-Sn thicker plates are assembled to support long durability, the batteries would be offering 12 years float service time. Flame Retardant material for ABS cases is available.

GEM I GF Series	Voltage (V)	Capacity (AH/10HR)	Dimension (in)				Weight ±5% (lbs)	Dimension (mm)				Weight ±5% (kgs)	Terminal
			±0.04	±0.04	±0.08	±0.08		±1	±1	±2	±2
			L (in)	W (in)	H (in)	TH (in)		L (mm)	W (mm)	H (mm)	TH (mm)
GF 12-50	12	50	10.91	4.18	8.79	9.06	37.48	277	106	223	230	17.00	M8*16
GF 12-75	12	72	22.14	4.53	7.37	7.64	42.99	562	115	187	194	19.50	M8*16
GF 12-75A	12	80	22.14	4.53	7.37	7.64	57.32	562	115	187	194	26.00	M8*16
GF 12-100	12	100	15.52	4.33	11.27	11.27	66.14	394	110	286	286	30.00	M8*16
GF 12-100B	12	100	15.52	4.33	11.27	11.27	68.34	394	110	286	286	31.00	M8*16
GF 12-110	12	110	15.52	4.33	11.27	11.27	72.75	394	110	286	286	33.00	M8*16
GF 12-105	12	105	19.98	4.33	8.79	9.38	70.55	507	110	223	238	32.00	M8*16
GF 12-120	12	120	21.71	4.29	9.46	9.46	89.73	551	109	240	240	40.70	M8*16
GF 12-125	12	125	21.47	4.14	12.41	12.41	88.62	545	105	315	315	40.20	M8*16
GF 12-155	12	155	21.71	4.33	11.35	11.35	106.92	551	110	288	288	48.50	M8*16
GF 12-170	12	170	21.67	4.93	11.03	11.03	112.43	550	125	280	280	51.00	M8*16
GF 12-180	12	180	21.67	4.93	11.03	11.03	119.05	550	125	280	280	54.00	M8*16
GF 12-170A	12	170	21.51	4.93	12.45	12.73	119.05	546	125	316	323	54.00	M8*16
GF 12-180A	12	180	21.51	4.93	12.45	12.73	123.46	546	125	316	323	56.00	M8*16
GF 12-200A	12	200	21.51	4.93	12.45	12.73	127.87	546	125	316	323	58.00	M8*16
GF 12-170B	12	170	22.10	4.93	12.45	12.45	112.43	561	125	316	316	51.00	M8*16
GF 12-180B	12	180	22.10	4.93	12.45	12.45	118.61	561	125	316	316	53.80	M8*16
GF 12-200B	12	200	22.10	4.93	12.45	12.45	128.97	561	125	316	316	58.50	M8*16

To download the data sheet of specific model, please Contact us

Hot Tags : sealed lead acid battery Agm leisure battery Agm car battery AGM UPS battery 12V Sla battery for data center SMF Rechargeable Battery

Leave a message

Next : GF12-50 (12V50AH)

Related Products

GEM Battery obtains strong R&D capability to design and develop customized/tailored battery models. If you cannot find a suitable model from our web, please contact us. We will arrange senior sales representatives to follow up your case.

GF12-50 (12V50AH)

Item: GF 12-50 (12V50AH/10Hr) Size: 277*106*223 mm (L*W*H) Weight: 17.00 ( +5% kg/pc) Terminal: M8*16 GEM I GF Series batteries are tailor-designed for telecom applications and the data centers. With the front terminal access layout, the batteries could be easily installed in modular cabinet & rack systems. The GEM I GF Series batteries adopt AGM technology, the new material AGM separator enables great efficiency of the internal gas re-combination and internal centralized venting operation, it makes the internal mechanism of the batteries running at low gas pressure so as to provide absolutely safe conditions and excellent reliability even if the compact width of the batteries. High quality Pb-Ca-Sn thicker plates are assembled to support long durability, the batteries would be offering 12 years float service time. Flame Retardant material for ABS cases is available. GEM I GF Series Voltage (V) Capacity (AH/10HR) Dimension (in) Weight ±5% (lbs) Dimension (mm) Weight ±5% (kgs) Terminal ±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2 L (in) W (in) H (in) TH (in) L (mm) W (mm) H (mm) TH (mm) GF 12-50 12 50 10.91 4.18 8.79 9.06 37.48 277 106 223 230 17.00 M8*16 GF 12-75 12 72 22.14 4.53 7.37 7.64 42.99 562 115 187 194 19.50 M8*16 GF 12-75A 12 80 22.14 4.53 7.37 7.64 57.32 562 115 187 194 26.00 M8*16 GF 12-100 12 100 15.52 4.33 11.27 11.27 66.14 394 110 286 286 30.00 M8*16 GF 12-100B 12 100 15.52 4.33 11.27 11.27 68.34 394 110 286 286 31.00 M8*16 GF 12-110 12 110 15.52 4.33 11.27 11.27 72.75 394 110 286 286 33.00 M8*16 GF 12-105 12 105 19.98 4.33 8.79 9.38 70.55 507 110 223 238 32.00 M8*16 GF 12-120 12 120 21.71 4.29 9.46 9.46 89.73 551 109 240 240 40.70 M8*16 GF 12-125 12 125 21.47 4.14 12.41 12.41 88.62 545 105 315 315 40.20 M8*16 GF 12-155 12 155 21.71 4.33 11.35 11.35 106.92 551 110 288 288 48.50 M8*16 GF 12-170 12 170 21.67 4.93 11.03 11.03 112.43 550 125 280 280 51.00 M8*16 GF 12-180 12 180 21.67 4.93 11.03 11.03 119.05 550 125 280 280 54.00 M8*16 GF 12-170A 12 170 21.51 4.93 12.45 12.73 119.05 546 125 316 323 54.00 M8*16 GF 12-180A 12 180 21.51 4.93 12.45 12.73 123.46 546 125 316 323 56.00 M8*16 GF 12-200A 12 200 21.51 4.93 12.45 12.73 127.87 546 125 316 323 58.00 M8*16 GF 12-170B 12 170 22.10 4.93 12.45 12.45 112.43 561 125 316 316 51.00 M8*16 GF 12-180B 12 180 22.10 4.93 12.45 12.45 118.61 561 125 316 316 53.80 M8*16 GF 12-200B 12 200 22.10 4.93 12.45 12.45 128.97 561 125 316 316 58.50 M8*16 To download the data sheet of specific model, please Contact us

GF12-75 (12V75AH)

Item: GF 12-75 (12V75AH/10Hr) Size: 562*115*187 mm (L*W*H) Weight: 19.50 ( +5% kg/pc) Terminal: M8*16 GEM I GF Series batteries are tailor-designed for telecom applications and the data centers. With the front terminal access layout, the batteries could be easily installed in modular cabinet & rack systems. The GEM I GF Series batteries adopt AGM technology, the new material AGM separator enables great efficiency of the internal gas re-combination and internal centralized venting operation, it makes the internal mechanism of the batteries running at low gas pressure so as to provide absolutely safe conditions and excellent reliability even if the compact width of the batteries. High quality Pb-Ca-Sn thicker plates are assembled to support long durability, the batteries would be offering 12 years float service time. Flame Retardant material for ABS cases is available. GEM I GF Series Voltage (V) Capacity (AH/10HR) Dimension (in) Weight ±5% (lbs) Dimension (mm) Weight ±5% (kgs) Terminal ±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2 L (in) W (in) H (in) TH (in) L (mm) W (mm) H (mm) TH (mm) GF 12-50 12 50 10.91 4.18 8.79 9.06 37.48 277 106 223 230 17.00 M8*16 GF 12-75 12 72 22.14 4.53 7.37 7.64 42.99 562 115 187 194 19.50 M8*16 GF 12-75A 12 80 22.14 4.53 7.37 7.64 57.32 562 115 187 194 26.00 M8*16 GF 12-100 12 100 15.52 4.33 11.27 11.27 66.14 394 110 286 286 30.00 M8*16 GF 12-100B 12 100 15.52 4.33 11.27 11.27 68.34 394 110 286 286 31.00 M8*16 GF 12-110 12 110 15.52 4.33 11.27 11.27 72.75 394 110 286 286 33.00 M8*16 GF 12-105 12 105 19.98 4.33 8.79 9.38 70.55 507 110 223 238 32.00 M8*16 GF 12-120 12 120 21.71 4.29 9.46 9.46 89.73 551 109 240 240 40.70 M8*16 GF 12-125 12 125 21.47 4.14 12.41 12.41 88.62 545 105 315 315 40.20 M8*16 GF 12-155 12 155 21.71 4.33 11.35 11.35 106.92 551 110 288 288 48.50 M8*16 GF 12-170 12 170 21.67 4.93 11.03 11.03 112.43 550 125 280 280 51.00 M8*16 GF 12-180 12 180 21.67 4.93 11.03 11.03 119.05 550 125 280 280 54.00 M8*16 GF 12-170A 12 170 21.51 4.93 12.45 12.73 119.05 546 125 316 323 54.00 M8*16 GF 12-180A 12 180 21.51 4.93 12.45 12.73 123.46 546 125 316 323 56.00 M8*16 GF 12-200A 12 200 21.51 4.93 12.45 12.73 127.87 546 125 316 323 58.00 M8*16 GF 12-170B 12 170 22.10 4.93 12.45 12.45 112.43 561 125 316 316 51.00 M8*16 GF 12-180B 12 180 22.10 4.93 12.45 12.45 118.61 561 125 316 316 53.80 M8*16 GF 12-200B 12 200 22.10 4.93 12.45 12.45 128.97 561 125 316 316 58.50 M8*16 To download the data sheet of specific model, please Contact us

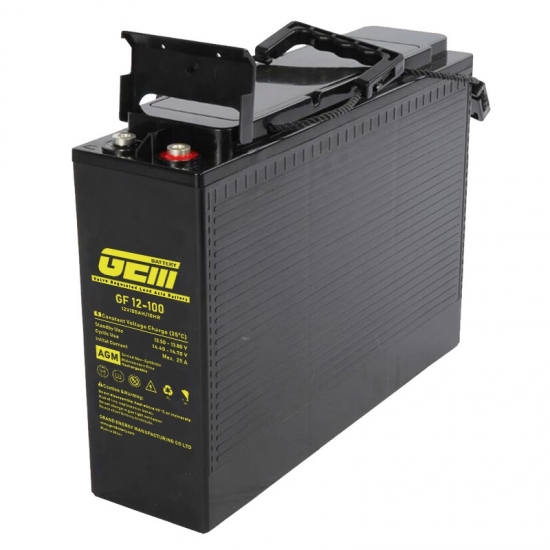

GF12-100 (12V100AH)

Item: GF 12-100 (12V100AH/10Hr) Size: 394*110*286 mm (L*W*H) Weight: 26.00 ( +5% kg/pc) Terminal: M8*16 GEM I GF Series batteries are tailor-designed for telecom applications and the data centers. With the front terminal access layout, the batteries could be easily installed in modular cabinet & rack systems. The GEM I GF Series batteries adopt AGM technology, the new material AGM separator enables great efficiency of the internal gas re-combination and internal centralized venting operation, it makes the internal mechanism of the batteries running at low gas pressure so as to provide absolutely safe conditions and excellent reliability even if the compact width of the batteries. High quality Pb-Ca-Sn thicker plates are assembled to support long durability, the batteries would be offering 12 years float service time. Flame Retardant material for ABS cases is available. GEM I GF Series Voltage (V) Capacity (AH/10HR) Dimension (in) Weight ±5% (lbs) Dimension (mm) Weight ±5% (kgs) Terminal ±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2 L (in) W (in) H (in) TH (in) L (mm) W (mm) H (mm) TH (mm) GF 12-50 12 50 10.91 4.18 8.79 9.06 37.48 277 106 223 230 17.00 M8*16 GF 12-75 12 72 22.14 4.53 7.37 7.64 42.99 562 115 187 194 19.50 M8*16 GF 12-75A 12 80 22.14 4.53 7.37 7.64 57.32 562 115 187 194 26.00 M8*16 GF 12-100 12 100 15.52 4.33 11.27 11.27 66.14 394 110 286 286 30.00 M8*16 GF 12-100B 12 100 15.52 4.33 11.27 11.27 68.34 394 110 286 286 31.00 M8*16 GF 12-110 12 110 15.52 4.33 11.27 11.27 72.75 394 110 286 286 33.00 M8*16 GF 12-105 12 105 19.98 4.33 8.79 9.38 70.55 507 110 223 238 32.00 M8*16 GF 12-120 12 120 21.71 4.29 9.46 9.46 89.73 551 109 240 240 40.70 M8*16 GF 12-125 12 125 21.47 4.14 12.41 12.41 88.62 545 105 315 315 40.20 M8*16 GF 12-155 12 155 21.71 4.33 11.35 11.35 106.92 551 110 288 288 48.50 M8*16 GF 12-170 12 170 21.67 4.93 11.03 11.03 112.43 550 125 280 280 51.00 M8*16 GF 12-180 12 180 21.67 4.93 11.03 11.03 119.05 550 125 280 280 54.00 M8*16 GF 12-170A 12 170 21.51 4.93 12.45 12.73 119.05 546 125 316 323 54.00 M8*16 GF 12-180A 12 180 21.51 4.93 12.45 12.73 123.46 546 125 316 323 56.00 M8*16 GF 12-200A 12 200 21.51 4.93 12.45 12.73 127.87 546 125 316 323 58.00 M8*16 GF 12-170B 12 170 22.10 4.93 12.45 12.45 112.43 561 125 316 316 51.00 M8*16 GF 12-180B 12 180 22.10 4.93 12.45 12.45 118.61 561 125 316 316 53.80 M8*16 GF 12-200B 12 200 22.10 4.93 12.45 12.45 128.97 561 125 316 316 58.50 M8*16 To download the data sheet of specific model, please Contact us

GF12-105 (12V105AH)

Item: GF 12-105 (12V105AH/10Hr) Size: 507*110*223 mm (L*W*H) Weight: 32.00 ( +5% kg/pc) Terminal: M8*16 GEM I GF Series batteries are tailor-designed for telecom applications and the data centers. With the front terminal access layout, the batteries could be easily installed in modular cabinet & rack systems. The GEM I GF Series batteries adopt AGM technology, the new material AGM separator enables great efficiency of the internal gas re-combination and internal centralized venting operation, it makes the internal mechanism of the batteries running at low gas pressure so as to provide absolutely safe conditions and excellent reliability even if the compact width of the batteries. High quality Pb-Ca-Sn thicker plates are assembled to support long durability, the batteries would be offering 12 years float service time. Flame Retardant material for ABS cases is available. GEM I GF Series Voltage (V) Capacity (AH/10HR) Dimension (in) Weight ±5% (lbs) Dimension (mm) Weight ±5% (kgs) Terminal ±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2 L (in) W (in) H (in) TH (in) L (mm) W (mm) H (mm) TH (mm) GF 12-50 12 50 10.91 4.18 8.79 9.06 37.48 277 106 223 230 17.00 M8*16 GF 12-75 12 72 22.14 4.53 7.37 7.64 42.99 562 115 187 194 19.50 M8*16 GF 12-75A 12 80 22.14 4.53 7.37 7.64 57.32 562 115 187 194 26.00 M8*16 GF 12-100 12 100 15.52 4.33 11.27 11.27 66.14 394 110 286 286 30.00 M8*16 GF 12-100B 12 100 15.52 4.33 11.27 11.27 68.34 394 110 286 286 31.00 M8*16 GF 12-110 12 110 15.52 4.33 11.27 11.27 72.75 394 110 286 286 33.00 M8*16 GF 12-105 12 105 19.98 4.33 8.79 9.38 70.55 507 110 223 238 32.00 M8*16 GF 12-120 12 120 21.71 4.29 9.46 9.46 89.73 551 109 240 240 40.70 M8*16 GF 12-125 12 125 21.47 4.14 12.41 12.41 88.62 545 105 315 315 40.20 M8*16 GF 12-155 12 155 21.71 4.33 11.35 11.35 106.92 551 110 288 288 48.50 M8*16 GF 12-170 12 170 21.67 4.93 11.03 11.03 112.43 550 125 280 280 51.00 M8*16 GF 12-180 12 180 21.67 4.93 11.03 11.03 119.05 550 125 280 280 54.00 M8*16 GF 12-170A 12 170 21.51 4.93 12.45 12.73 119.05 546 125 316 323 54.00 M8*16 GF 12-180A 12 180 21.51 4.93 12.45 12.73 123.46 546 125 316 323 56.00 M8*16 GF 12-200A 12 200 21.51 4.93 12.45 12.73 127.87 546 125 316 323 58.00 M8*16 GF 12-170B 12 170 22.10 4.93 12.45 12.45 112.43 561 125 316 316 51.00 M8*16 GF 12-180B 12 180 22.10 4.93 12.45 12.45 118.61 561 125 316 316 53.80 M8*16 GF 12-200B 12 200 22.10 4.93 12.45 12.45 128.97 561 125 316 316 58.50 M8*16 To download the data sheet of specific model, please Contact us

GF12-110 (12V110AH)

Item: GF 12-110 (12V110AH/10Hr) Size: 394*110*286 mm (L*W*H) Weight: 33.00 ( +5% kg/pc) Terminal: M8*16 GEM I GF Series batteries are tailor-designed for telecom applications and the data centers. With the front terminal access layout, the batteries could be easily installed in modular cabinet & rack systems. The GEM I GF Series batteries adopt AGM technology, the new material AGM separator enables great efficiency of the internal gas re-combination and internal centralized venting operation, it makes the internal mechanism of the batteries running at low gas pressure so as to provide absolutely safe conditions and excellent reliability even if the compact width of the batteries. High quality Pb-Ca-Sn thicker plates are assembled to support long durability, the batteries would be offering 12 years float service time. Flame Retardant material for ABS cases is available. GEM I GF Series Voltage (V) Capacity (AH/10HR) Dimension (in) Weight ±5% (lbs) Dimension (mm) Weight ±5% (kgs) Terminal ±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2 L (in) W (in) H (in) TH (in) L (mm) W (mm) H (mm) TH (mm) GF 12-50 12 50 10.91 4.18 8.79 9.06 37.48 277 106 223 230 17.00 M8*16 GF 12-75 12 72 22.14 4.53 7.37 7.64 42.99 562 115 187 194 19.50 M8*16 GF 12-75A 12 80 22.14 4.53 7.37 7.64 57.32 562 115 187 194 26.00 M8*16 GF 12-100 12 100 15.52 4.33 11.27 11.27 66.14 394 110 286 286 30.00 M8*16 GF 12-100B 12 100 15.52 4.33 11.27 11.27 68.34 394 110 286 286 31.00 M8*16 GF 12-110 12 110 15.52 4.33 11.27 11.27 72.75 394 110 286 286 33.00 M8*16 GF 12-105 12 105 19.98 4.33 8.79 9.38 70.55 507 110 223 238 32.00 M8*16 GF 12-120 12 120 21.71 4.29 9.46 9.46 89.73 551 109 240 240 40.70 M8*16 GF 12-125 12 125 21.47 4.14 12.41 12.41 88.62 545 105 315 315 40.20 M8*16 GF 12-155 12 155 21.71 4.33 11.35 11.35 106.92 551 110 288 288 48.50 M8*16 GF 12-170 12 170 21.67 4.93 11.03 11.03 112.43 550 125 280 280 51.00 M8*16 GF 12-180 12 180 21.67 4.93 11.03 11.03 119.05 550 125 280 280 54.00 M8*16 GF 12-170A 12 170 21.51 4.93 12.45 12.73 119.05 546 125 316 323 54.00 M8*16 GF 12-180A 12 180 21.51 4.93 12.45 12.73 123.46 546 125 316 323 56.00 M8*16 GF 12-200A 12 200 21.51 4.93 12.45 12.73 127.87 546 125 316 323 58.00 M8*16 GF 12-170B 12 170 22.10 4.93 12.45 12.45 112.43 561 125 316 316 51.00 M8*16 GF 12-180B 12 180 22.10 4.93 12.45 12.45 118.61 561 125 316 316 53.80 M8*16 GF 12-200B 12 200 22.10 4.93 12.45 12.45 128.97 561 125 316 316 58.50 M8*16 To download the data sheet of specific model, please Contact us

GF12-120 (12V120AH)

Item: GF 12-120 (12V120AH/10Hr) Size: 551*109*240 mm (L*W*H) Weight: 40.70 ( +5% kg/pc) Terminal: M8*16 GEM I GF Series batteries are tailor-designed for telecom applications and the data centers. With the front terminal access layout, the batteries could be easily installed in modular cabinet & rack systems. The GEM I GF Series batteries adopt AGM technology, the new material AGM separator enables great efficiency of the internal gas re-combination and internal centralized venting operation, it makes the internal mechanism of the batteries running at low gas pressure so as to provide absolutely safe conditions and excellent reliability even if the compact width of the batteries. High quality Pb-Ca-Sn thicker plates are assembled to support long durability, the batteries would be offering 12 years float service time. Flame Retardant material for ABS cases is available. GEM I GF Series Voltage (V) Capacity (AH/10HR) Dimension (in) Weight ±5% (lbs) Dimension (mm) Weight ±5% (kgs) Terminal ±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2 L (in) W (in) H (in) TH (in) L (mm) W (mm) H (mm) TH (mm) GF 12-50 12 50 10.91 4.18 8.79 9.06 37.48 277 106 223 230 17.00 M8*16 GF 12-75 12 72 22.14 4.53 7.37 7.64 42.99 562 115 187 194 19.50 M8*16 GF 12-75A 12 80 22.14 4.53 7.37 7.64 57.32 562 115 187 194 26.00 M8*16 GF 12-100 12 100 15.52 4.33 11.27 11.27 66.14 394 110 286 286 30.00 M8*16 GF 12-100B 12 100 15.52 4.33 11.27 11.27 68.34 394 110 286 286 31.00 M8*16 GF 12-110 12 110 15.52 4.33 11.27 11.27 72.75 394 110 286 286 33.00 M8*16 GF 12-105 12 105 19.98 4.33 8.79 9.38 70.55 507 110 223 238 32.00 M8*16 GF 12-120 12 120 21.71 4.29 9.46 9.46 89.73 551 109 240 240 40.70 M8*16 GF 12-125 12 125 21.47 4.14 12.41 12.41 88.62 545 105 315 315 40.20 M8*16 GF 12-155 12 155 21.71 4.33 11.35 11.35 106.92 551 110 288 288 48.50 M8*16 GF 12-170 12 170 21.67 4.93 11.03 11.03 112.43 550 125 280 280 51.00 M8*16 GF 12-180 12 180 21.67 4.93 11.03 11.03 119.05 550 125 280 280 54.00 M8*16 GF 12-170A 12 170 21.51 4.93 12.45 12.73 119.05 546 125 316 323 54.00 M8*16 GF 12-180A 12 180 21.51 4.93 12.45 12.73 123.46 546 125 316 323 56.00 M8*16 GF 12-200A 12 200 21.51 4.93 12.45 12.73 127.87 546 125 316 323 58.00 M8*16 GF 12-170B 12 170 22.10 4.93 12.45 12.45 112.43 561 125 316 316 51.00 M8*16 GF 12-180B 12 180 22.10 4.93 12.45 12.45 118.61 561 125 316 316 53.80 M8*16 GF 12-200B 12 200 22.10 4.93 12.45 12.45 128.97 561 125 316 316 58.50 M8*16 To download the data sheet of specific model, please Contact us

GF12-125 (12V125AH)

Item: GF 12-125 (12V125AH/10Hr) Size: 545*105*315 mm (L*W*H) Weight: 40.20 ( +5% kg/pc) Terminal: M8*16 GEM I GF Series batteries are tailor-designed for telecom applications and the data centers. With the front terminal access layout, the batteries could be easily installed in modular cabinet & rack systems. The GEM I GF Series batteries adopt AGM technology, the new material AGM separator enables great efficiency of the internal gas re-combination and internal centralized venting operation, it makes the internal mechanism of the batteries running at low gas pressure so as to provide absolutely safe conditions and excellent reliability even if the compact width of the batteries. High quality Pb-Ca-Sn thicker plates are assembled to support long durability, the batteries would be offering 12 years float service time. Flame Retardant material for ABS cases is available. GEM I GF Series Voltage (V) Capacity (AH/10HR) Dimension (in) Weight ±5% (lbs) Dimension (mm) Weight ±5% (kgs) Terminal ±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2 L (in) W (in) H (in) TH (in) L (mm) W (mm) H (mm) TH (mm) GF 12-50 12 50 10.91 4.18 8.79 9.06 37.48 277 106 223 230 17.00 M8*16 GF 12-75 12 72 22.14 4.53 7.37 7.64 42.99 562 115 187 194 19.50 M8*16 GF 12-75A 12 80 22.14 4.53 7.37 7.64 57.32 562 115 187 194 26.00 M8*16 GF 12-100 12 100 15.52 4.33 11.27 11.27 66.14 394 110 286 286 30.00 M8*16 GF 12-100B 12 100 15.52 4.33 11.27 11.27 68.34 394 110 286 286 31.00 M8*16 GF 12-110 12 110 15.52 4.33 11.27 11.27 72.75 394 110 286 286 33.00 M8*16 GF 12-105 12 105 19.98 4.33 8.79 9.38 70.55 507 110 223 238 32.00 M8*16 GF 12-120 12 120 21.71 4.29 9.46 9.46 89.73 551 109 240 240 40.70 M8*16 GF 12-125 12 125 21.47 4.14 12.41 12.41 88.62 545 105 315 315 40.20 M8*16 GF 12-155 12 155 21.71 4.33 11.35 11.35 106.92 551 110 288 288 48.50 M8*16 GF 12-170 12 170 21.67 4.93 11.03 11.03 112.43 550 125 280 280 51.00 M8*16 GF 12-180 12 180 21.67 4.93 11.03 11.03 119.05 550 125 280 280 54.00 M8*16 GF 12-170A 12 170 21.51 4.93 12.45 12.73 119.05 546 125 316 323 54.00 M8*16 GF 12-180A 12 180 21.51 4.93 12.45 12.73 123.46 546 125 316 323 56.00 M8*16 GF 12-200A 12 200 21.51 4.93 12.45 12.73 127.87 546 125 316 323 58.00 M8*16 GF 12-170B 12 170 22.10 4.93 12.45 12.45 112.43 561 125 316 316 51.00 M8*16 GF 12-180B 12 180 22.10 4.93 12.45 12.45 118.61 561 125 316 316 53.80 M8*16 GF 12-200B 12 200 22.10 4.93 12.45 12.45 128.97 561 125 316 316 58.50 M8*16 To download the data sheet of specific model, please Contact us

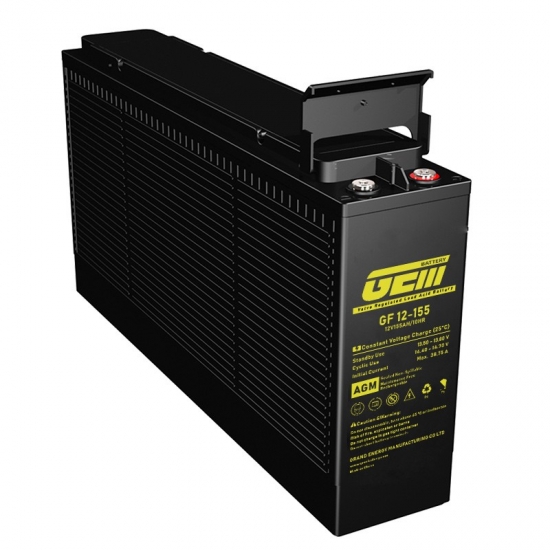

GF12-155 (12V155AH)

Item: GF 12-155 (12V155AH/10Hr) Size: 551*110*288 mm (L*W*H) Weight: 48.50 ( +5% kg/pc) Terminal: M8*16 GEM I GF Series batteries are tailor-designed for telecom applications and the data centers. With the front terminal access layout, the batteries could be easily installed in modular cabinet & rack systems. The GEM I GF Series batteries adopt AGM technology, the new material AGM separator enables great efficiency of the internal gas re-combination and internal centralized venting operation, it makes the internal mechanism of the batteries running at low gas pressure so as to provide absolutely safe conditions and excellent reliability even if the compact width of the batteries. High quality Pb-Ca-Sn thicker plates are assembled to support long durability, the batteries would be offering 12 years float service time. Flame Retardant material for ABS cases is available. GEM I GF Series Voltage (V) Capacity (AH/10HR) Dimension (in) Weight ±5% (lbs) Dimension (mm) Weight ±5% (kgs) Terminal ±0.04 ±0.04 ±0.08 ±0.08 ±1 ±1 ±2 ±2 L (in) W (in) H (in) TH (in) L (mm) W (mm) H (mm) TH (mm) GF 12-50 12 50 10.91 4.18 8.79 9.06 37.48 277 106 223 230 17.00 M8*16 GF 12-75 12 72 22.14 4.53 7.37 7.64 42.99 562 115 187 194 19.50 M8*16 GF 12-75A 12 80 22.14 4.53 7.37 7.64 57.32 562 115 187 194 26.00 M8*16 GF 12-100 12 100 15.52 4.33 11.27 11.27 66.14 394 110 286 286 30.00 M8*16 GF 12-100B 12 100 15.52 4.33 11.27 11.27 68.34 394 110 286 286 31.00 M8*16 GF 12-110 12 110 15.52 4.33 11.27 11.27 72.75 394 110 286 286 33.00 M8*16 GF 12-105 12 105 19.98 4.33 8.79 9.38 70.55 507 110 223 238 32.00 M8*16 GF 12-120 12 120 21.71 4.29 9.46 9.46 89.73 551 109 240 240 40.70 M8*16 GF 12-125 12 125 21.47 4.14 12.41 12.41 88.62 545 105 315 315 40.20 M8*16 GF 12-155 12 155 21.71 4.33 11.35 11.35 106.92 551 110 288 288 48.50 M8*16 GF 12-170 12 170 21.67 4.93 11.03 11.03 112.43 550 125 280 280 51.00 M8*16 GF 12-180 12 180 21.67 4.93 11.03 11.03 119.05 550 125 280 280 54.00 M8*16 GF 12-170A 12 170 21.51 4.93 12.45 12.73 119.05 546 125 316 323 54.00 M8*16 GF 12-180A 12 180 21.51 4.93 12.45 12.73 123.46 546 125 316 323 56.00 M8*16 GF 12-200A 12 200 21.51 4.93 12.45 12.73 127.87 546 125 316 323 58.00 M8*16 GF 12-170B 12 170 22.10 4.93 12.45 12.45 112.43 561 125 316 316 51.00 M8*16 GF 12-180B 12 180 22.10 4.93 12.45 12.45 118.61 561 125 316 316 53.80 M8*16 GF 12-200B 12 200 22.10 4.93 12.45 12.45 128.97 561 125 316 316 58.50 M8*16 To download the data sheet of specific model, please Contact us
