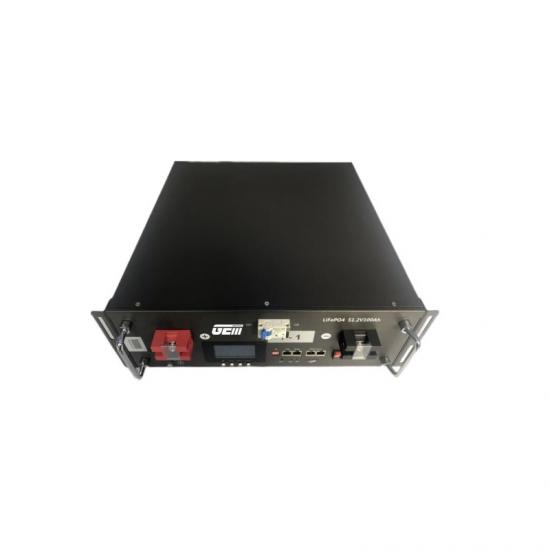

Lithium (LiFePO4) Battery GiB-48V

High quality and safe Lithium battery (LiFePO4) 48V / 51.2V

Brand:
GEM BATTERY
Item No.:
GiB-48V
Payment:
TT bank transfer, shipment terms FOB & CIF
Product origin:
China
Color:
Customized color available
Shipping port:
All China ports, by sea shipping
Lead Time:
25 days
Designed Life:
20 years
Type:
Lithium LiFePO4
Application:
All types of energy storage

inquire now

Product Details

GiB Series Lithium battery, as critical part of the most popular Energy Storage System (ESS), is widely using in industrial & commercial applications as well as household solar systems.

① Super-safe lithium iron phosphate (LiFePO4) chemistry reducing the risk of explosion or combustion from high impact, over-charging or short circuit

② Battery Management System (BMS) controls the battery parameters to provide optimum safety, by protecting against over-charge and over-discharge.

③ Intelligent BMS design balances the battery cells to an optimized performance.

④ Higher-Capacity or Higher-Voltage available through parallel or serial connections.

⑤ Robust ABS case with rugged-impact resistant.

● Cycle life

GiB 51.6V Lithium batteries are for customized projects, available with below DOD cycles, subject to the project budget.

✔ DOD80% = 2000 cycles
✔ DOD80% = 3000 cycles
✔ DOD80% = 4000 cycles
✔ DOD80% = 6000 cycles

● Safety/Fuse Protection.
Under the protection of built-in BMS, every single piece of GiB Lithium battery is extremely safe with current control. The smart BMS would protect your batteries from over-load discharge, over-charge, temperature exceed (low & high safety level).

● Equalization of battery initial specification.
We could have equalized specifications of the batteries in series/parallel on OCV, IR, Capacity, Temp, etc...

● Warming / heating panel available for low temperature application (-45℃).
This is quite helpful when batteries are using in extreme temperature conditions, summer hot and winter cold.

● Customized with digital display screen, Bluetooth, GPS, etc... more functional configuration could be developed.

● Tell us your power requirement, we could design/customize the battery system for you.

GEM Battery GiB Series	Energy (KWH)	Voltage (V)	Capacity (AH)	Dimension (mm)			Max. Discharge Current (A)	Type	Comm.
				L	W	H
				±1	±1	±2
GiB 48-50	2.56	51.2	50	445	385	155	BMS 1C	LiFePO4	485 CAN
GiB 48-100	5.12	51.2	100	546	430	200	BMS 1C	LiFePO4	485 CAN
GiB 48-150	7.68	51.2	150	443	442	227	BMS 1C	LiFePO4	485 CAN
GiB 48-200	10.24	51.2	200	510	442	246	BMS 1C	LiFePO4	485 CAN
GiB 51R050 Rack	2.56	51.2	50	445	385	155	BMS 1C	LiFePO4	485 CAN
GiB 51R100 Rack	5.12	51.2	100	546	430	200	BMS 1C	LiFePO4	485 CAN
GiB 51R150 Rack	7.68	51.2	150	443	442	227	BMS 1C	LiFePO4	485 CAN
GiB 51R200 Rack	10.24	51.2	200	510	442	246	BMS 1C	LiFePO4	485 CAN
GiB 51W050 Wall	2.56	51.2	50				BMS 1C	LiFePO4	485 CAN
GiB 51W100 Wall	5.12	51.2	100	442	170	600	BMS 1C	LiFePO4	485 CAN
GiB 51W150 Wall	7.68	51.2	150	500	150	600	BMS 1C	LiFePO4	485 CAN
GiB 51W200 Wall	10.24	51.2	200	580	170	880	BMS 1C	LiFePO4	485 CAN

* GiB 51.2V batteries support multiple units connection in series / parallel.

* All GiB Lithium batteries are available with digital display screen (optional on request).

* Please contact GEM Battery sales rep to get latest updating model list of the batteries.

* Please contact GEM Battery sales rep to get customized battery specification, battery sizing and the pricing.
