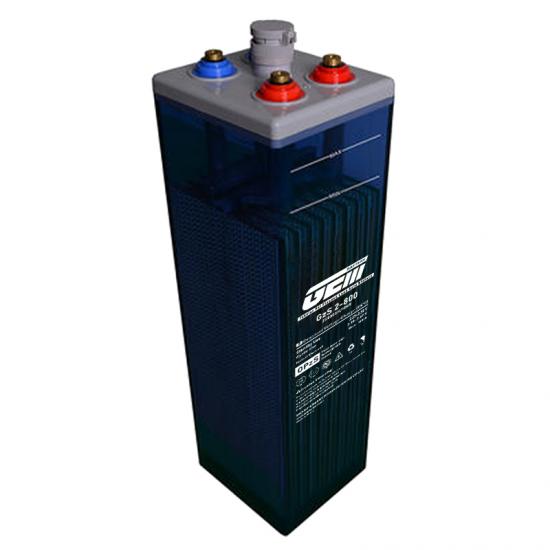

GzS 2-800（2V800AH）

Brand:
GEM BATTERY
Item No.:
GzS 2-800
Payment:
TT bank transfer, shipment terms FOB & CIF
Min order:
One pallet load (about 1300 kgs)
Product origin:
China
Color:
Transparent plastic
Shipping port:
All China ports, by sea shipping
Lead Time:
28 days
Designed Life:
20 years
Type:
OPzS (wet/vented/flooded)
Application:
Sizable renewable energy storage, Power plant, Off-grid power, Solar power, Telecom power, UPS power

inquire now

Product Details

Item: GzS 2-800 (2V800AH/10Hr)
Size: 210*191*646 mm (L*W*H)
Weight: 64.00 ( +5% kg/pc)

GEM Battery I GzS Series batteries are known as OPzS battery (wet battery, vented battery, flooded battery), it is particularly designed for Renewable Energy Power reserve and supply system.

➤ Features:

1. Extremely long life, GzS batteries are designed for 20 years of float service life.

2. Wide operation temperature between -45C and 60C.

3. High and stable durability for deep and cyclic discharges.

4. Modular installation for saving footprint space and easy management.

5. Highly reliable performance offers peace of mind away from battery power failure.

➤ Technical highlights:

1. Tubular positive plates: alloyed by strengthened and special-formulated Pb-Ca-Sn-Ag grids with high corrosion resistance. The tubular tube construction is optimized for high-energy containing PAM.

2. Flat pasted negative plates: selected thicker plates and grids consisting of high purity Pb-Ca-Sn alloy for a long-life cooperation supporting to the positive plates.

3. Separator: High quality Micro-porous PVC-SiO2 material, it's excellent for electrolyte permeability and low internal resistance.

4. Electrolyte: High purity Sulfuric Acid H₂SO₄ following a tailor-made mixing formula.

5. Vented open, flooded lead acid battery, regular maintenance is required for GzS-OPzS batteries.

➤ Typical applications:

1. Renewable Energy Power reserve and supply, sizable Solar power and Wind power projects.

2. On-Off-Grid Power industry

3. Power Plant

4. Mobile Energy power storage systems

5. Telecom, BTS, Radio wave station

● GEM Battery I GzS Series Flooded-Vented-Wet batteries.

GEM I GzS Series	Voltage (V)	Capacity (AH/10HR)	Dimension (in)				Dry Weight (lbs) ±5%	Wet Weight (lbs) ±5%	Dimension (mm)				Dry Weight (kg) ±5%	Wet Weight (kg) ±5%
			±0.04	±0.04	±0.08	±0.08			±1	±1	±2	±2
			L	W	H	TH			L	W	H	TH
GzS 2-200	2	200	8.12	4.06	14.03	16.15	28.22	38.58	206	103	356	410	12.80	17.50
GzS 2-250	2	250	8.12	4.89	14.03	16.15	33.29	45.19	206	124	356	410	15.10	20.50
GzS 2-300	2	300	8.12	5.71	14.03	16.15	38.58	52.91	206	145	356	410	17.50	24.00
GzS 2-350	2	350	8.12	4.89	18.64	20.72	43.65	59.52	206	124	473	526	19.80	27.00
GzS 2-400	2	400	8.12	5.71	18.64	20.72	50.71	70.55	206	145	473	526	23.00	32.00
GzS 2-500	2	500	8.12	6.54	18.64	20.72	57.76	83.77	206	166	473	526	26.20	38.00
GzS 2-600	2	600	8.12	5.71	25.45	27.62	71.65	103.62	206	145	646	701	32.50	47.00
GzS 2-800	2	800	8.27	7.53	25.45	27.62	99.21	141.09	210	191	646	701	45.00	64.00
GzS 2-1000	2	1000	9.18	8.27	25.45	27.62	118.83	160.94	233	210	646	701	53.90	73.00
GzS 2-1200	2	1200	10.84	8.27	25.45	27.62	139.77	202.82	275	210	646	701	63.40	92.00
GzS 2-1500	2	1500	10.84	8.27	31.32	33.49	169.75	233.69	275	210	795	850	77.00	106.00
GzS 2-2000	2	2000	15.72	8.35	30.34	32.51	229.28	319.67	399	212	770	825	104.00	145.00
GzS 2-2500	2	2500	19.19	8.35	30.34	32.39	286.60	396.83	487	212	770	822	130.00	180.00
GzS 2-3000	2	3000	22.69	8.35	30.34	32.51	343.92	485.01	576	212	770	825	156.00	220.00
